Angle based SSAO

Introduction
SSAO (Screen space ambient occlusion) is a common post processing effect that approximate how much light is occluded in a given surface by the surrounding objects. In this year SIGGRAPH, there are a few slides in "The Technology behind the Unreal Engine 4 Elemental Demo" about how they implement SSAO. Their technique can either use only the depth buffer or with the addition of per-pixel normal. And I tried to implement both version with a slight modification:


Using only the depth buffer
The definition of ambient occlusion is to calculate the visibility integral over the hemisphere of a given surface:

To approximate this in screen space, we design our sampling pattern as paired samples:

paired sample pattern

So for each pair of samples, we can approximate how much the shading point is occluded in 2D instead of integrating over the hemisphere:

The AO term for each given pair of samples will be min( (θleft + θright)/π, 1). Then by averaging the AO terms of all the sample pairs (in my case, there are 6 pairs), we achieve the following result:

Dealing with large depth differences
As seen from the above screen shot, there is dark halos around the knight. But the knight should not contribute AO to the castle as he is too far away. So to deal with the large depth differences. I adopt the approach used in Toy Story 3. If one of the paired sample is too far away from the shading point, say the red point in the following figure, it will be replace by the pink point, which is on the same plane as the other valid paired sample:

So we can interpolate between the red point and the pink point for dealing with the large depth difference. Now the dark halo has gone:

The above treatment only handle if one of the paired sample is far away from shading point. What if both of the samples have large depth differences?

dark halo artifact is shown around the sword

AO strength of this pic is increased to high light the artifact

In this case, it will result in the dark halo around the sword in the above screen shot. Remember we are averaging the all the paired samples to compute the final AO value. So to deal with this artifact, we just assign a weight to each paired samples and then re-normalize the final result. Say, for each paired sample, if both of the samples are within a small depth differences, that sample pair will have a weight of 1. If only 1 sample is far away, that pair will have a weight of 0.5. And finally if both of the samples is far away, the weight will be 0. This can eliminate most(but not all) of the artifacts:

Approximating arc-cos function
In this approach, the AO is calculated by using the angle between the paired samples, which need to evaluate the arc-cos function which is a bit expensive. We can approximate acos(x) with a linear function:  π(1-x)/2.

And the resulting AO looks much darker with this approximation:

computed with the arc-cos function

computed with the linear approximation

Note that the maximum error between the two function is around 18.946 degree.

This may affect the AO for the area of a curved surface with low tessellation. You may either need to increase the bias angle threshold or switch to a more accurate function. So my second attempt is to approximate it with a quadratic function:  π(1- sign(x) * x * x)/2.

And this approximation shows a much similar result to the one using the arc-cos function.

computed with the arc-cos function

computed with the quadratic approximation

And the maximum error of this function is around 9.473 degree.

Using per-pixel normal
We can enhance the details of AO by making use of the per-pixel normal. The per-pixel normal is used for further restricting the angle to compute the AO where the angle θleft, θright are clamped to the tangent plane :

And here is the final result:

Conclusion
The result of this AO is pleasant by taking total 12 samples per pixel and with 16 rotation in 4x4 pixel block at half resolution. I did not apply bilateral blur to the AO result, but applying the blur may gives a softer AO look. Also approximating the arc-cos function with a linear function although is not accurate, but it gives a good enough result for me. Finally more time are need to spend on generating the sampling pattern in the future where the pattern I currently used is nearly uniform distributed (with some jittering).

References
[1] The Technology behind the Unreal Engine 4 Elemental Demo http://advances.realtimerendering.com/s2012/Epic/The%20Technology%20Behind%20the%20Elemental%20Demo%2016x9.pptx
[2] Rendering techniques in Toy Story 3
http://advances.realtimerendering.com/s2010/Ownby,Hall%20and%20Hall%20-%20Toystory3%20(SIGGRAPH%202010%20Advanced%20RealTime%20Rendering%20Course).pdf
[3] Image-Space Horizon-Based Ambient Occlusion
http://www.nvidia.com/object/siggraph-2008-HBAO.html
[4] http://www.wolframalpha.com/
[5] The models are export from UDK and extracted from Infinity Blade using umodel.exe

SSAO using Line Integrals

Hi everyone, this is my first post in #AltDevBlogADay. Let me introduce myself first, I am Simon Yeung, currently working as a game programmer. I like graphics programming and sometimes write iPhone apps.
This time, I would like to talk about the SSAO implemented in my little demo program. I write this demo because I spent most of my time using openGL and know little about DirectX, so I decided to learn DX by writing this demo. So it is not well optimized.
SSAO, short for Screen Space Ambient Occlusion, is a technique for approximating the indirect shadow casted by surrounding scene geometry which is done in screen space by sampling from the depth buffer.
The SSAO is implemented using the line integrals from "Rendering techniques in Toy Story 3"[1]. Here is my results:

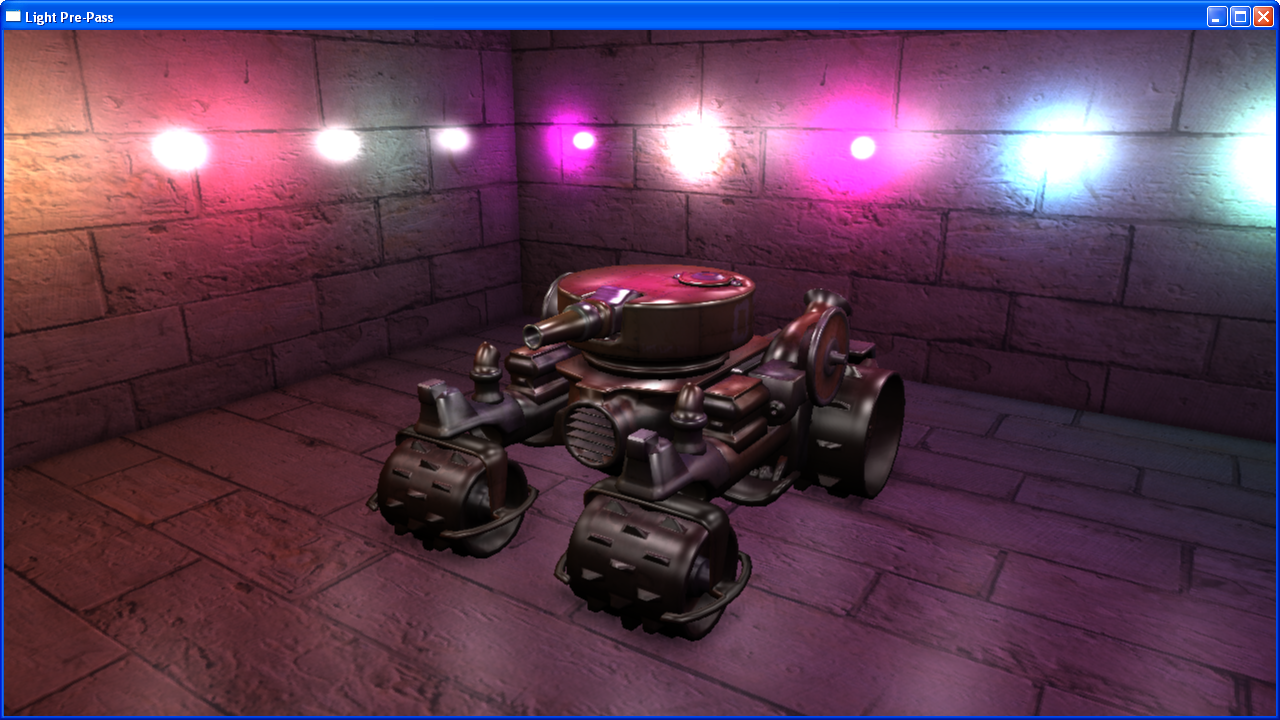

With SSAO

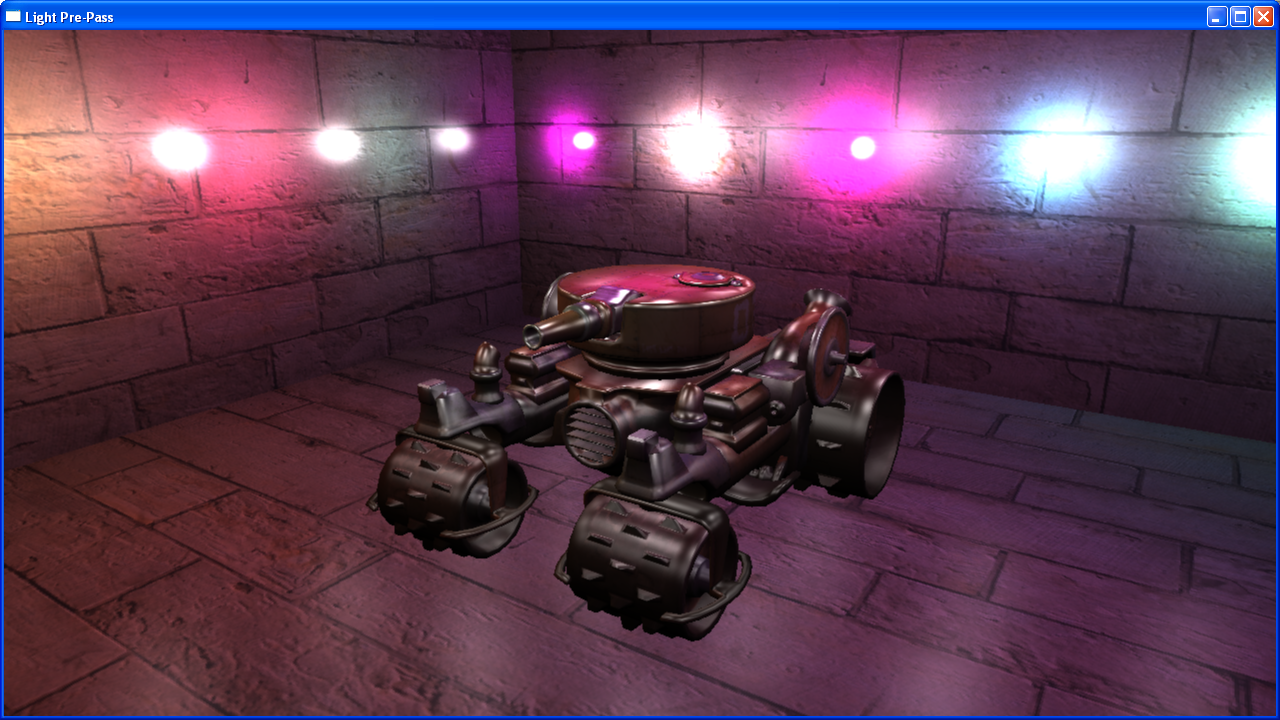

without SSAO

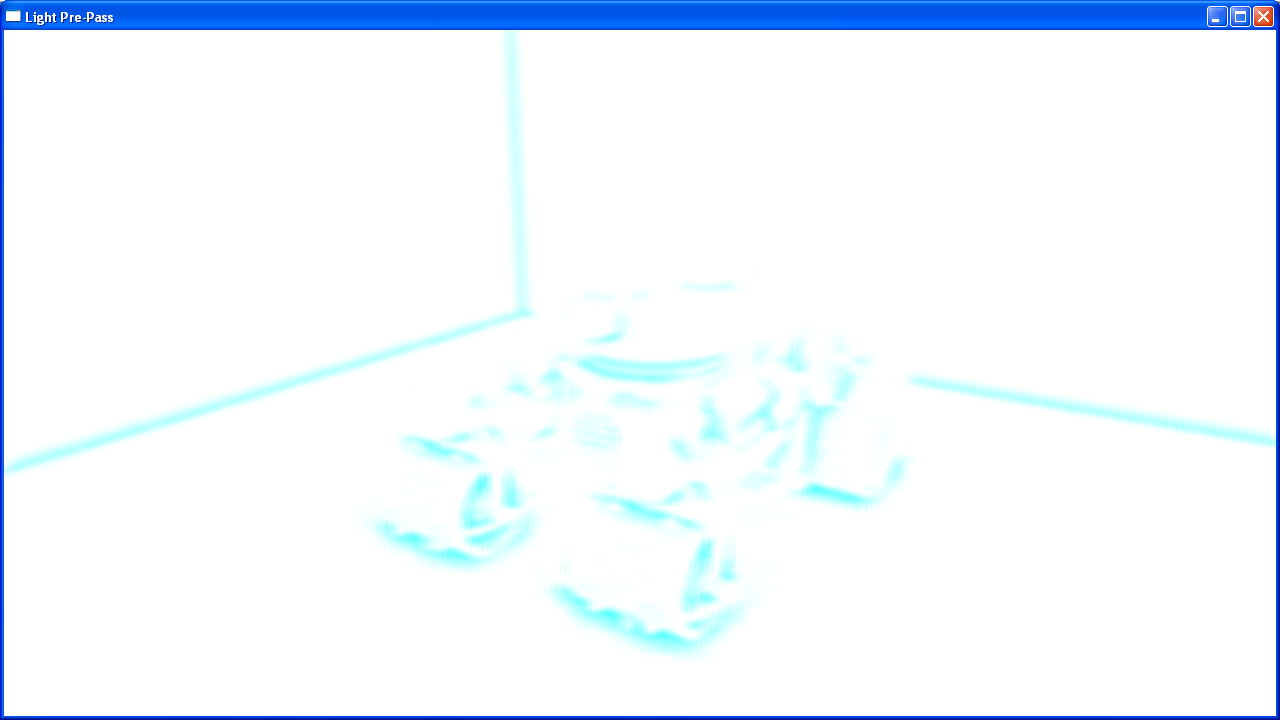

SSAO texture

Their method calculates the volume occluded by other objects inside a sphere at each fragment by sampling from the depth buffer.

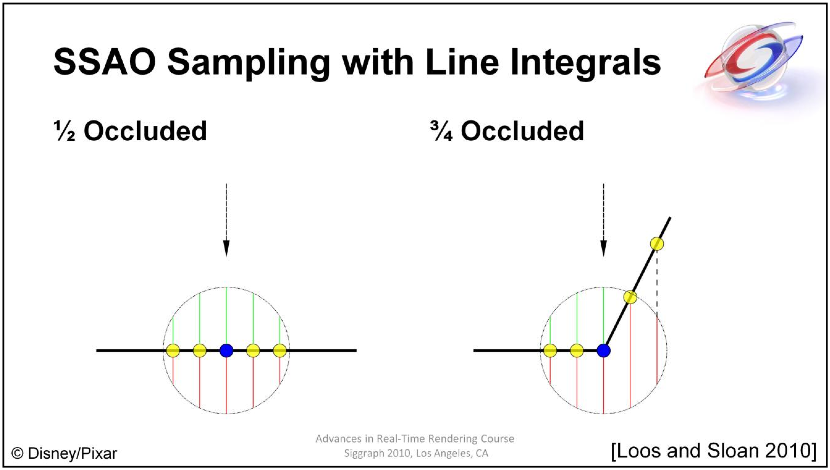

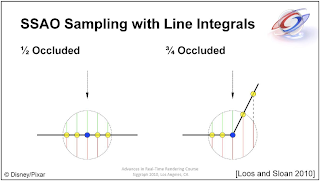

From Slide 22 of the paper

The volume of sphere is found by using the equation:

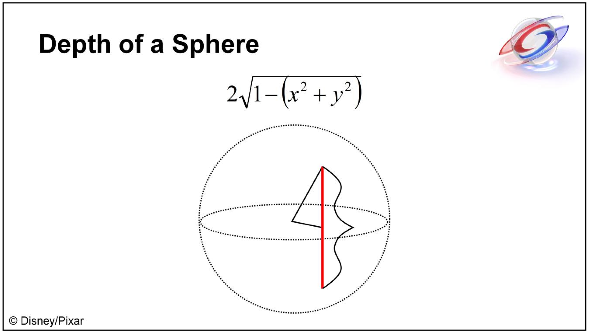

From Slide 51 of the paper

And they use the Voronoi Diagram to associate the ratio of volume occupied by each sample points for their predefined sampling pattern.
But in my implementation, I didn't use the Voronoi Diagram, in stead, I tried to calculate the volume occupied by the depth sample using that equation in the pixel shader. However , due to the perspective projection, that equation no longer holds as the ray will not form a right angle triangle which is not the same as above figure, and resulting the artifact as below(the wall on the right side):

The artifact on the wall on the right side

So, I tried to solve the problem by using ray-sphere intersection to calculate a more accurate line integrals.

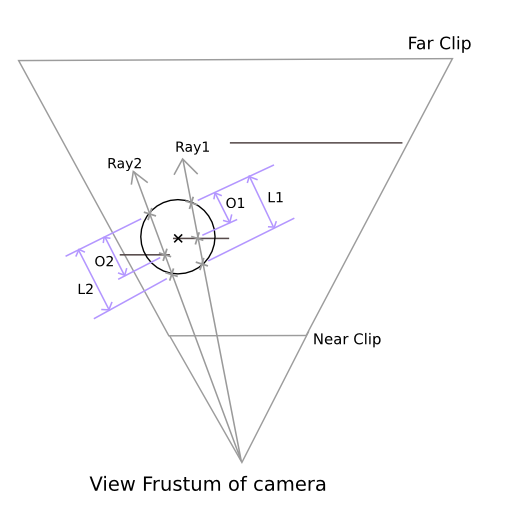

For example, when calculate the occlusion volume for the black cross in the above diagram (take 2 depth samples for easy explanation), I need to compute the length L1 and L2 by solving ray-sphere intersection. Also the length O1 and O2 can be computed by sampling from the depth buffer. Therefore, the volume of the sphere can be approximated by L1+L2 and the occlusion volume can be approximated by O1+O2. (I also added a distance attenuation factor to O1 and O2 if the depth difference is too large so that the tank does not occlude the wall in my demo program). And the AO value will be (O1+O2)/(L1+L2)
This eliminate the artifacts:

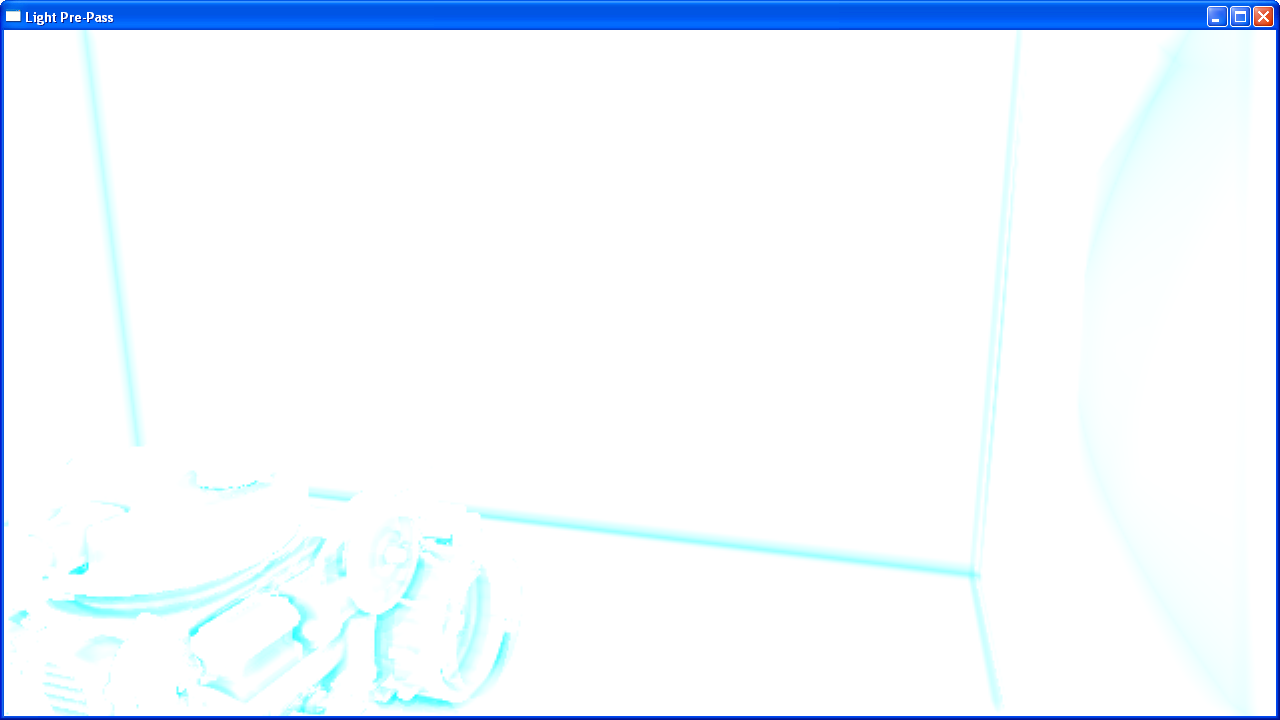

Solving ray-sphere intersection to eliminate the artifacts

The demo program uses 8 depth samples for each fragment. In order to fake a higher sample count, I also tried to rotate the sample points as suggested by the paper which gives a softer look for the AO:

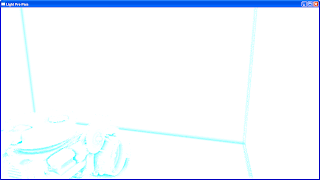

Rotating the sample points

Then, a bilateral blur is applied to smooth out the noise. Although bilateral blur is not separable, it is faster to divided it into 2 passes (i.e. 1 horizontal and 1 vertical, just like Gaussian blur), with 5 samples for each pass, which gives a softer result:

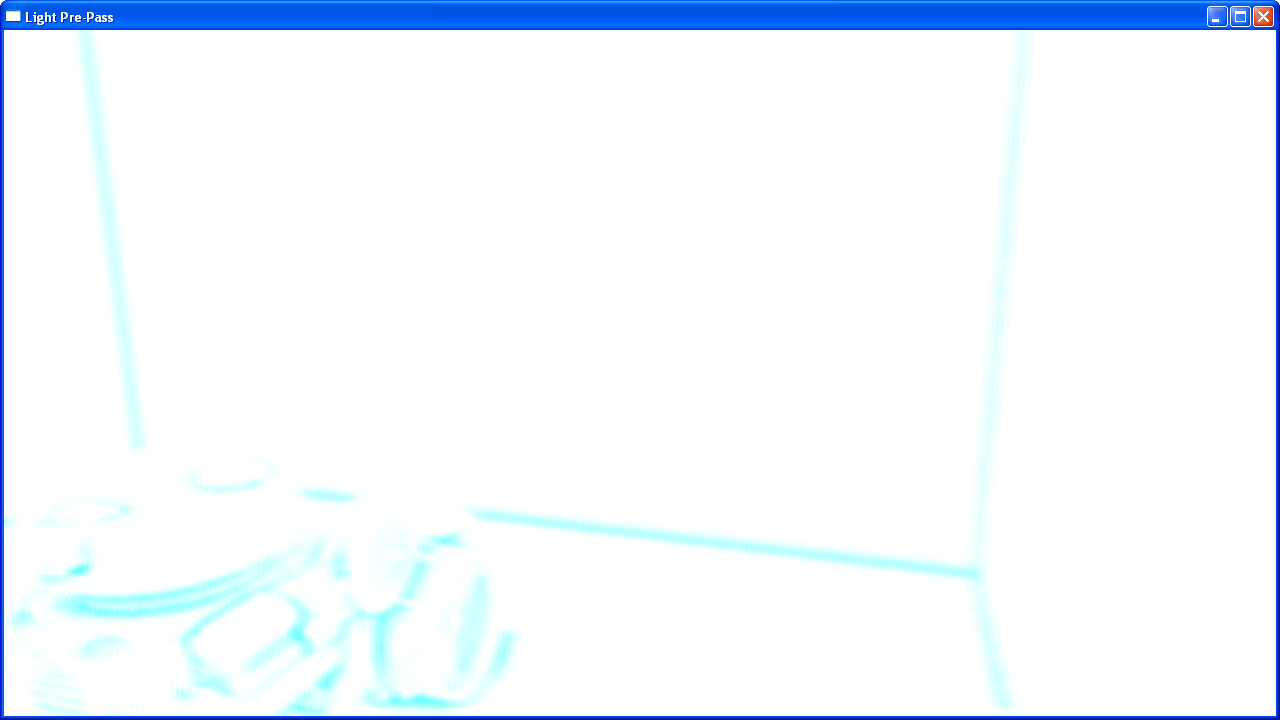

After bilateral blur

Finally the SSAO texture is blend with the scene:

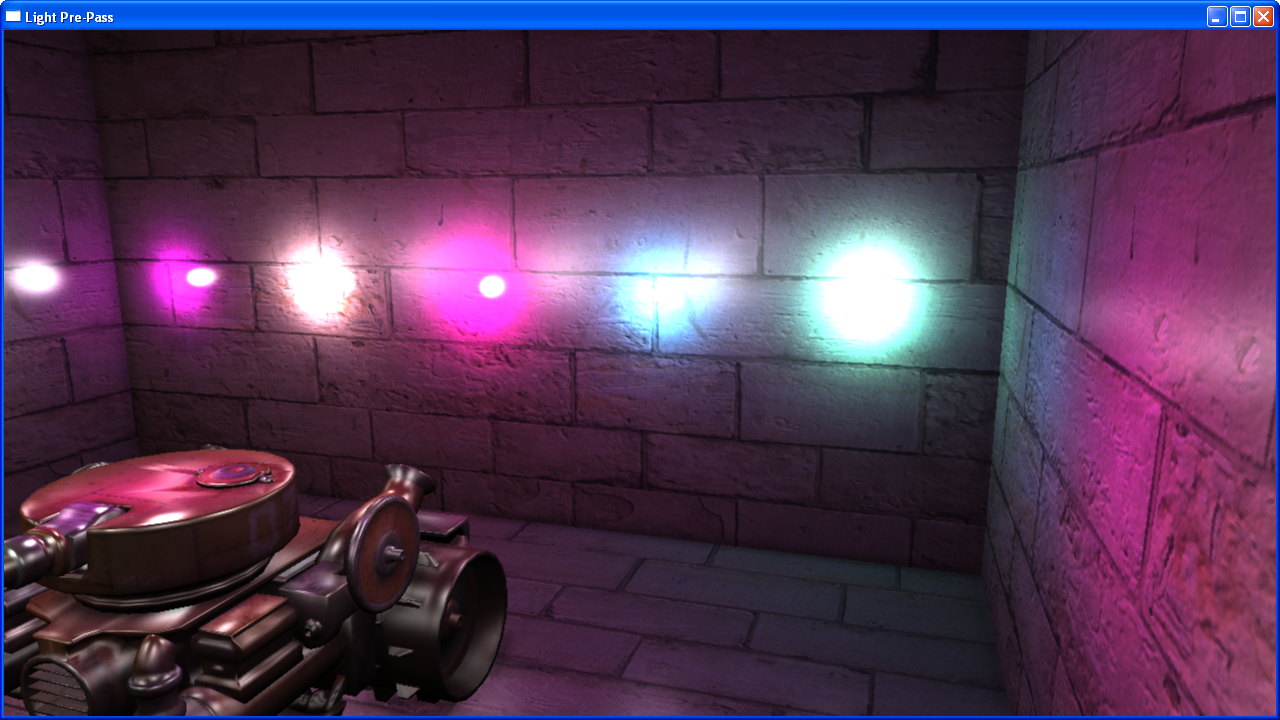

Applying SSAO to the scene

In conclusion, I finished the SSAO but it is not optimized, there are several places can be improved such as when calculating the line integrals, I made several branches in pixel shader which slow down a lot. Also I rotated the sample points by calculate a rotation angle using the fragment position in pixel shader which can also be optimized using a pre-computed rotation angle texture as the paper suggested. These things can be improved but my main purpose of this demo is make me familiar with DirectX, so I just left out the optimization and left as future enhancement.
